Solar Ocean HS420-440TC-MHO-D

Name: Solar Ocean HS420-440TC-MHO-D
Brand: Horay Solar
SKU: 62431
Price: 0.07924 EUR
Availability: InStock

Horay Solar Co., Ltd

Prezzo:

A partire da €0,0792 / Wp

Price / Unit
Minimum Order	1-99 Pieces	100-999 Pieces	1000+ Pieces
HS420TC-MHO-D	€35,3	€34,3	€33,3

Technology:	Bifacciale, Tipo N
Fascia di Potenza:	420 ~ 440 Wp
Regione:	Cina

Contatta il Produttore

Note: La tua Richiesta verrà inviata direttamente a Horay Solar Co., Ltd.

Descrizione:

Higher module efficiency and higher output power
Innovative half-cell and N-type technology
Better shade tolerance and reduced internal mismatch loss
High performance under low light conditions
TUV, CQC, and CE Certified
Passed PID, fire, salt mist corrosion, and ammonia corrosion tests

Informazioni del Prodotto
Profilo Della Compagnia

Caratteristiche del Prodotto

Tipo

Monocristallino

Numero Modello

HS420TC-MHO-D

HS425TC-MHO-D

HS430TC-MHO-D

HS435TC-MHO-D

HS440TC-MHO-D

Garanzia

Garanzia Prodotto

30 Anni

Dati Elettrici in Condizioni Standard

Potenza Massima(Pmax)

420 Wp

425 Wp

430 Wp

435 Wp

440 Wp

Tensione alla Massima Potenza (Vmpp)

32,44 V

32,64 V

32,84 V

33,04 V

33,24 V

Corrente alla massima potenza (Impp)

12,95 A

13,03 A

13,11 A

13,17 A

13,24 A

Tensione a Vuoto(Voc)

38,73 V

38,93 V

39,13 V

39,33 V

39,53 V

Corrente di corto circuito (Isc)

14,01 A

14,07 A

14,15 A

14,22 A

14,33 A

Efficienza del modulo

21,51 %

21,8 %

22,02 %

22,28 %

22,53 %

Condizioni di prova standard (STC): massa d'aria AM 1,5, irraggiamento 1000W/m2, temperatura della cella 25 ° C

Dati elettrici con NOCT

Potenza Massima(Pmax)

320 Wp

324 Wp

328 Wp

332 Wp

336 Wp

Tensione alla Massima Potenza (Vmpp)

30,11 V

30,32 V

30,51 V

30,73 V

30,92 V

Corrente alla massima potenza (Impp)

10,62 A

10,68 A

10,74 A

10,8 A

10,86 A

Tensione a Vuoto(Voc)

36,61 V

36,92 V

37,12 V

37,32 V

37,53 V

Corrente di corto circuito (Isc)

11,31 A

11,37 A

11,43 A

11,49 A

11,55 A

Temperatura

45±2 °C

Temperatura di esercizio nominale della cella (NOCT): 800W/m2, AM 1,5, velocità del vento 1m / s, temperatura ambiente 20 ° C

Valutazioni di Temperatura

Temperatura Operativa

-40~85 °C

Coefficiente di Temperatura di Pmax

-0,28 %/°C

Coefficiente di Temperatura di Voc

-0,23 %/°C

Coefficiente di Temperatura di Isc

0,04 %/°C

Valutazioni Massime

Tensione Massima di Sistema

1500 V

Tensione Nominale del Fusibile

25 A

Dati Matrial

Dimesioni (A/L/P)

1722x1134x30 mm

Peso

24 kg

Dimensione Cella

182×91 mm

Numero Cella

108

Spessore del Vetro

2 mm

Tipo di Telaio

Alluminio, Black

Protezione Scatola di Derivazione

IP 68

Tipo di Connettori

MC4

Diametro Cavi

4 mm²

Lunghezza del Cavi

1100 mm

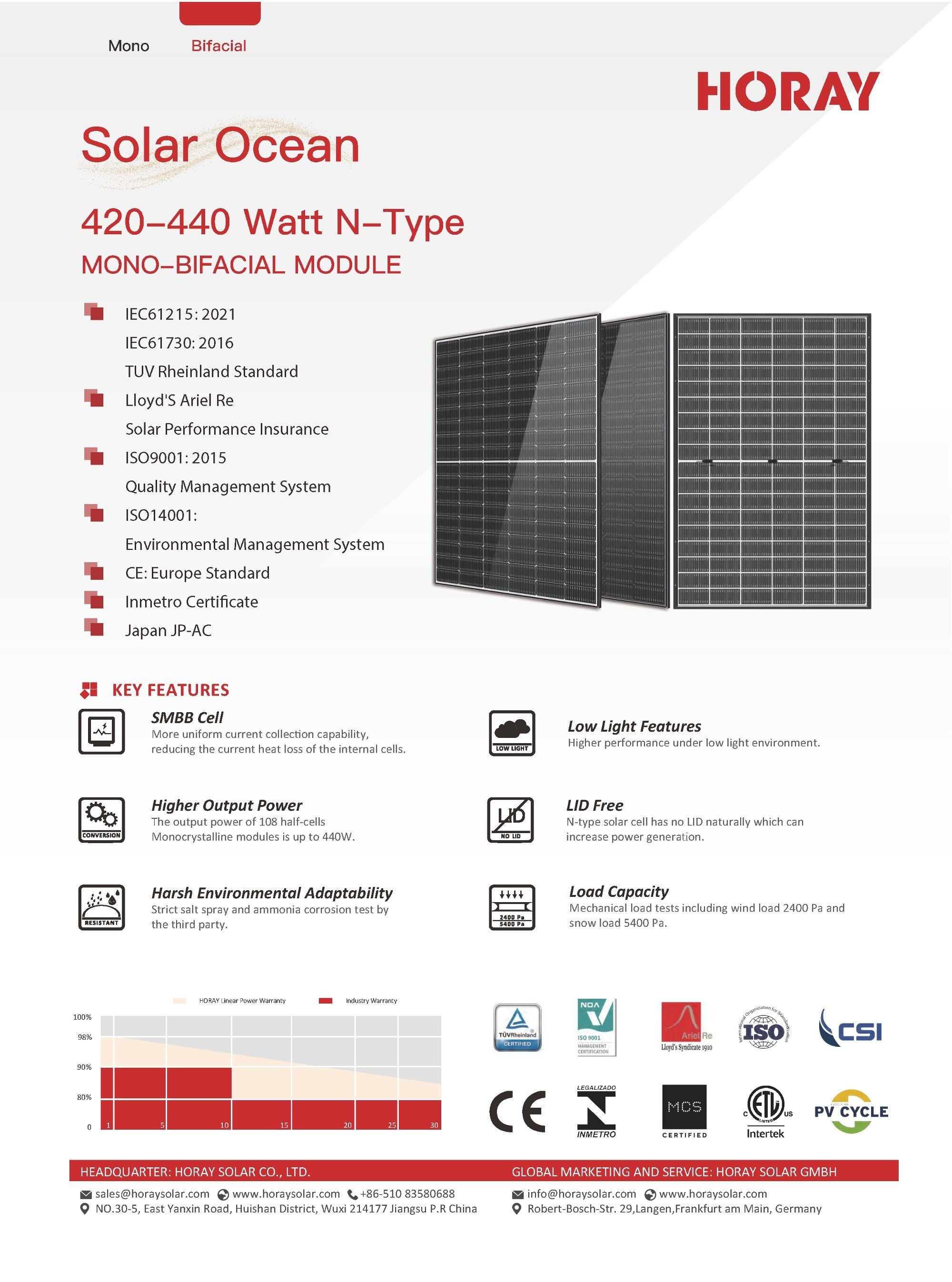

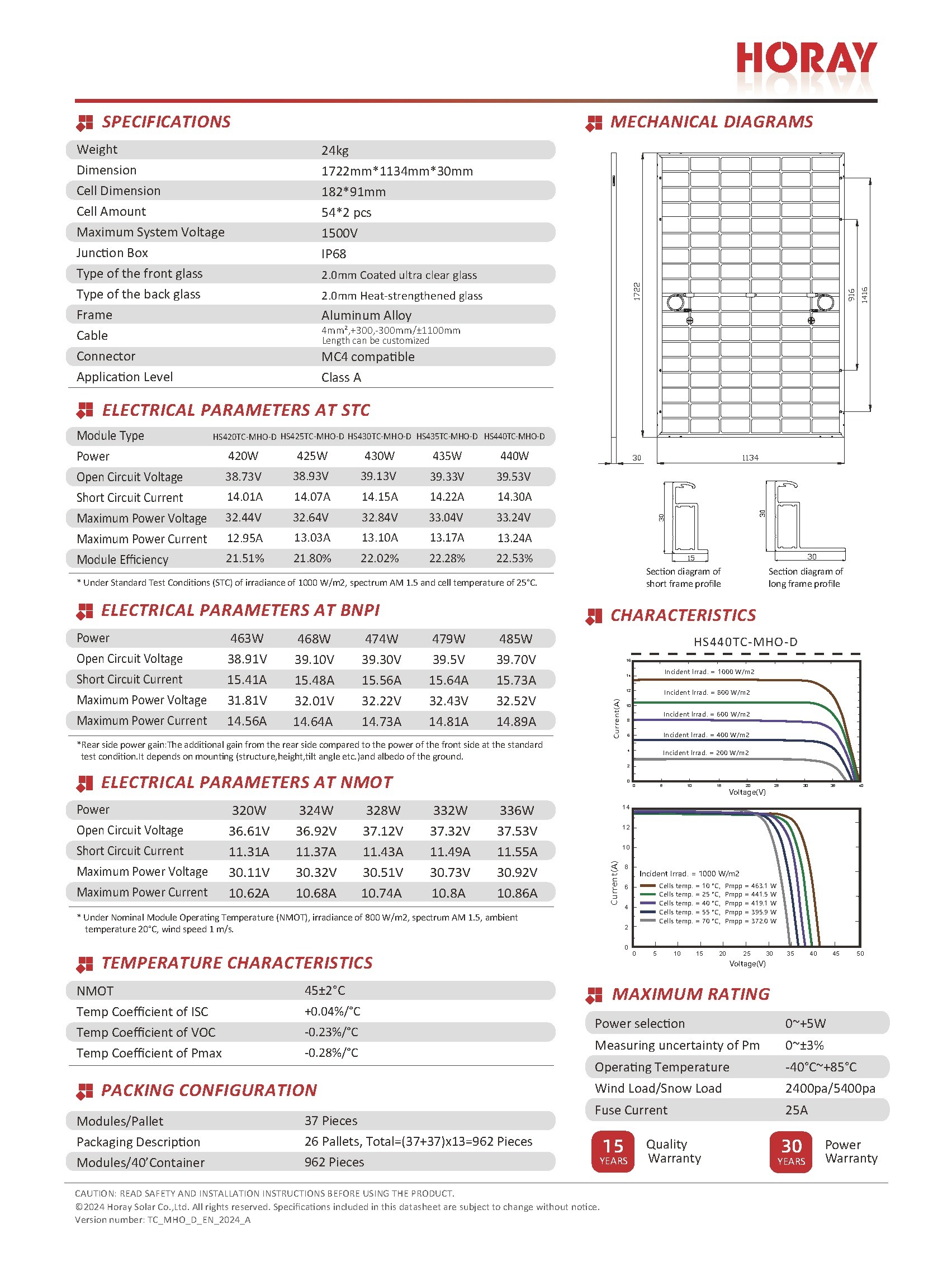

PDF

Scarica Il PDF Del Produttore

Solar Ocean HS420-440TC-MHO-D

Company Introduction

Horay Solar is an integrated photovoltaic company with innovative solar cells, modules, and power systems. With our in-house R&D center, we are continuously creating high-tech solar products.

With established technical support, scientific production management, and strict quality control, we produce industry-leading solutions. Authorized by international certification bodies, our modules are ready for various solar applications.

Our production line ranges from 30w to 600w for polycrystalline and monocrystalline modules. We also offer customized solutions for our customers with special requirements.

Horay Solar - China Headquarters

(Focuses on producing high-efficiency half-cell solar modules)

Horay Solar was established in 2020. The company focuses on the R&D and sales of solar power systems and modules. It has the most advanced fully automated assembly line, and the annual output can reach 500MW. HoRay Solar can supply the latest 166mm half-cut and bifacial modules, and it is planned to produce 182mm modules up to 500W.

My Solar China - Branch Factory in China

(Focuses on producing customized solar modules)

My Solar was established in 2010. After ten years of hard work, we accumulated rich experience and established a professional team. In 2020, we founded the new company HoRay Solar. We achieved a great leap in production capacity and product up-gradation.

My Solar Malaysia Sdn Bhd - Branch Factory in Malaysia

(Focuses on the North American market)

In 2019, we set up a solar module factory in Johor Bahru, Malaysia, especially for the North American market.

We at Horay Solar, offer better value for our customers with constant investment in cutting-edge technologies. The group's purpose is to supply cost-effective solar products to our clients. HoRay Solar is willing to cooperate with everyone to create a green world

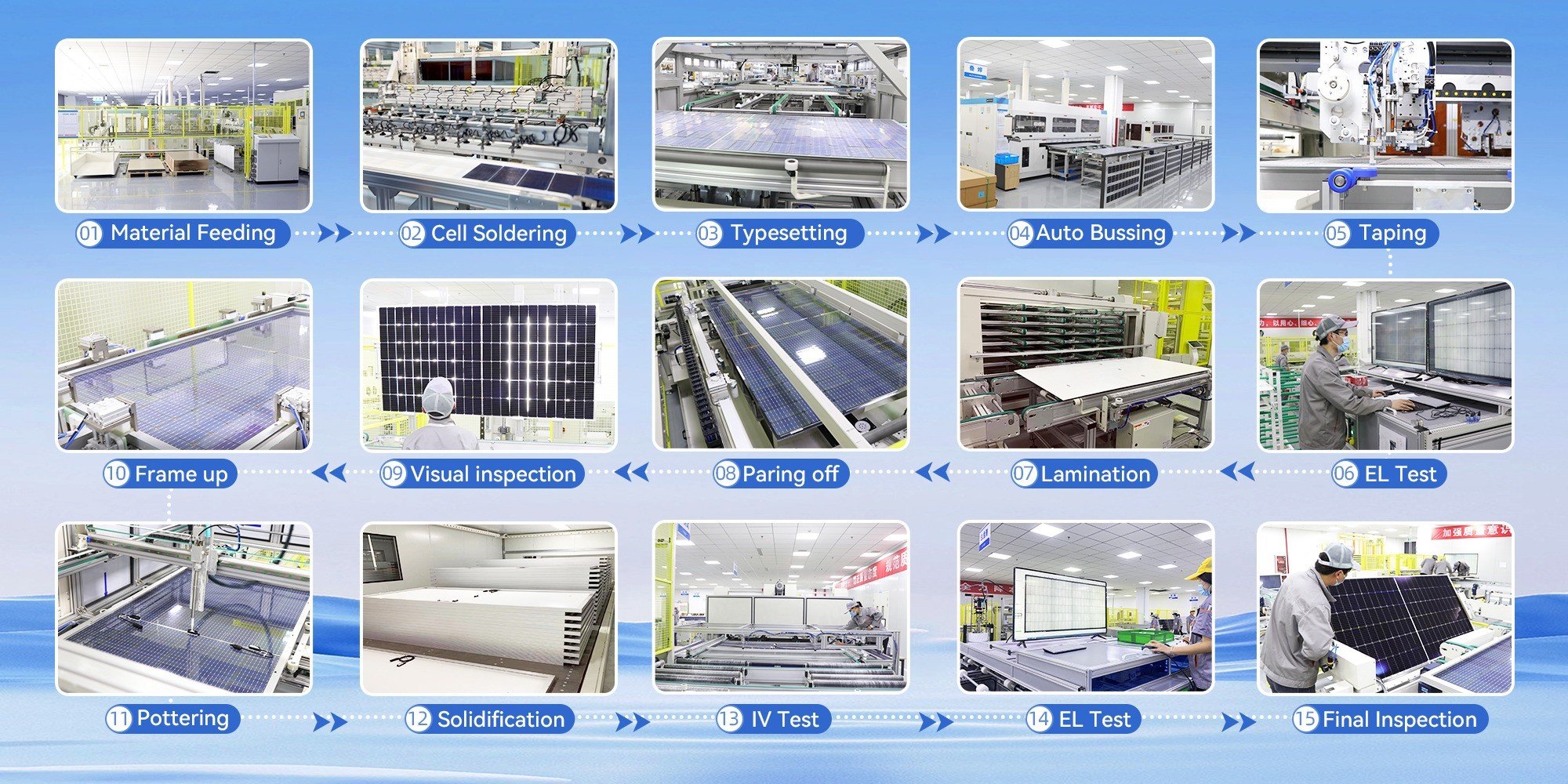

Manufacturing Process

Global Offices

Rotterdam Warehouse

Malaysia Factory

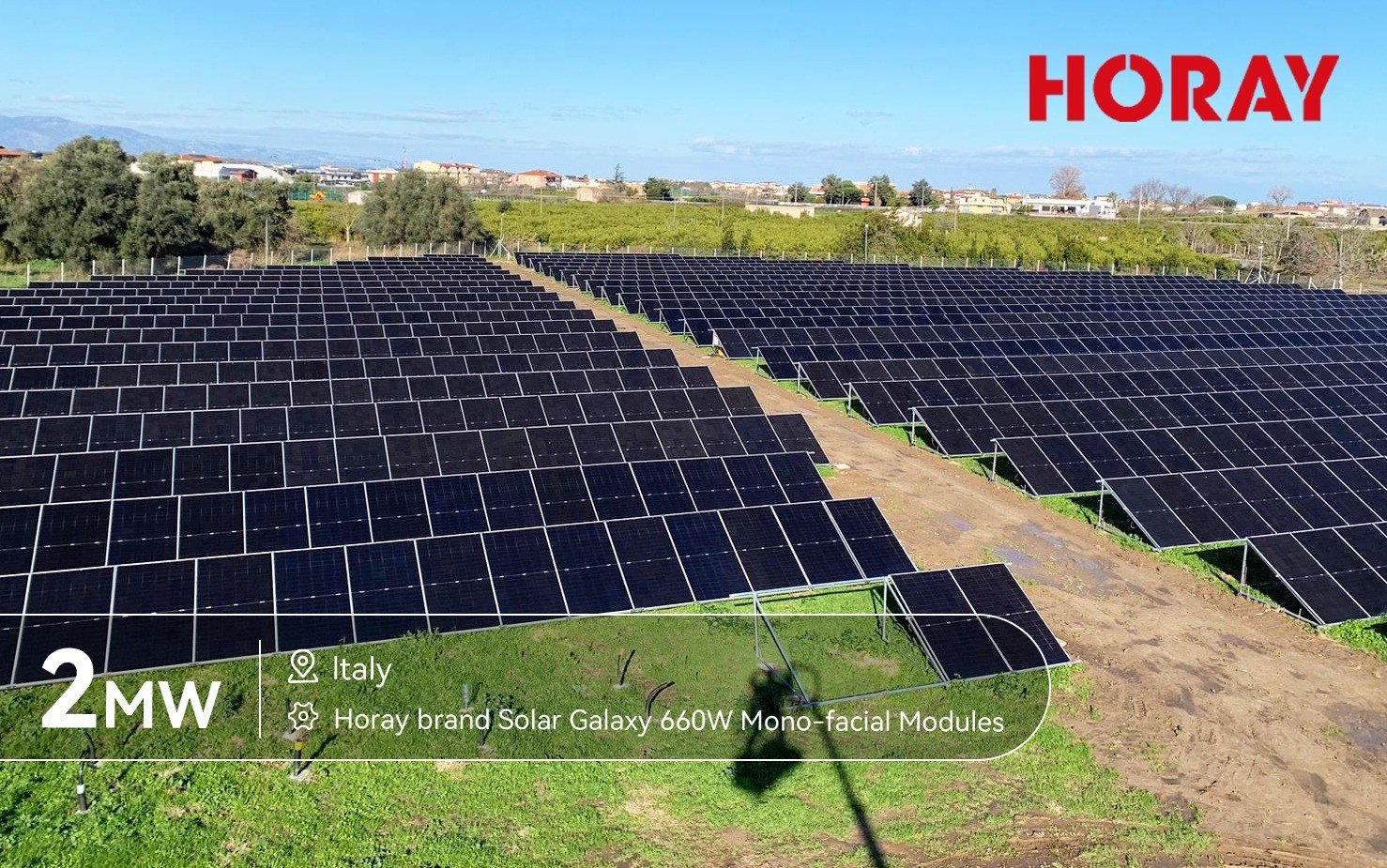

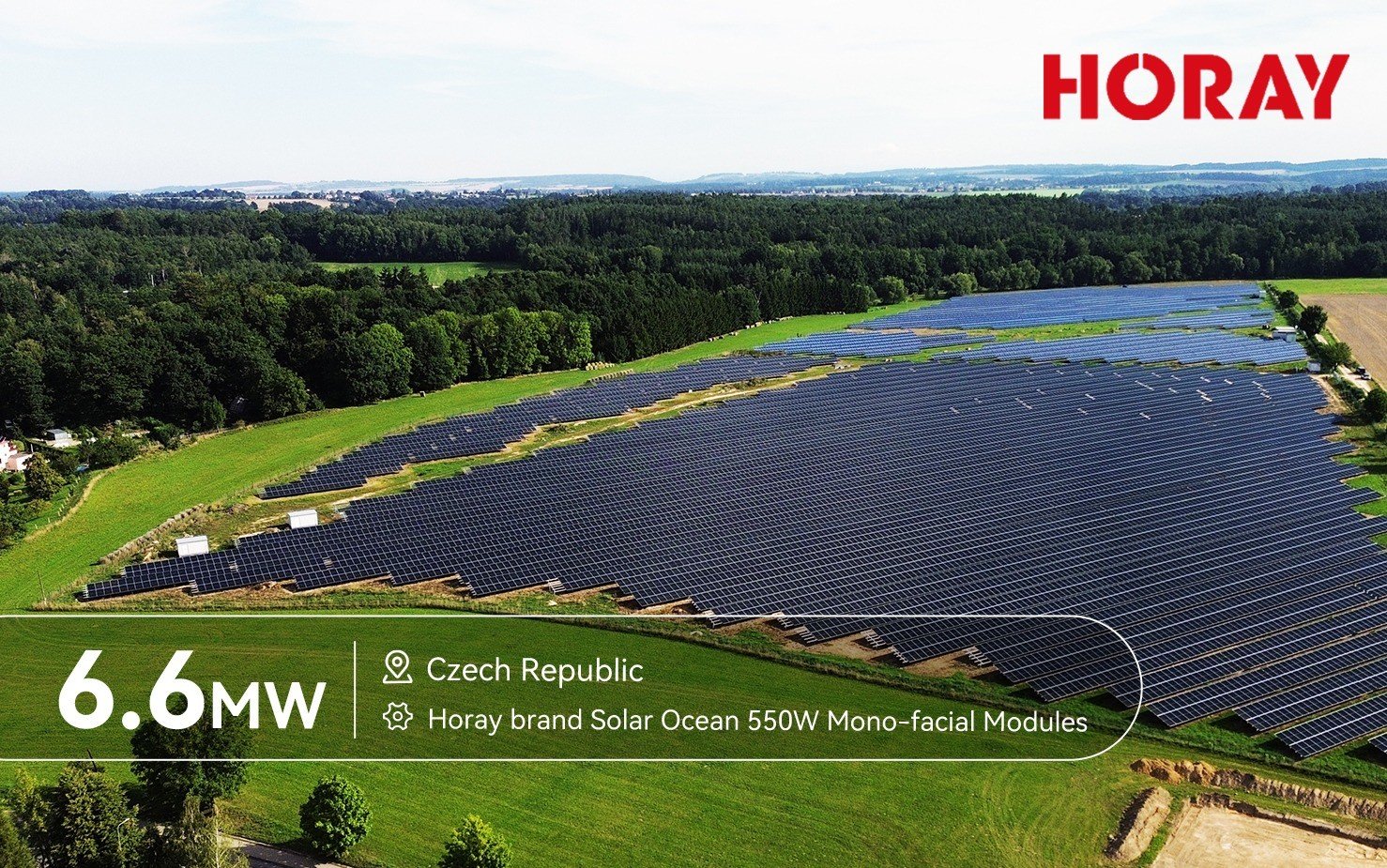

Projects
