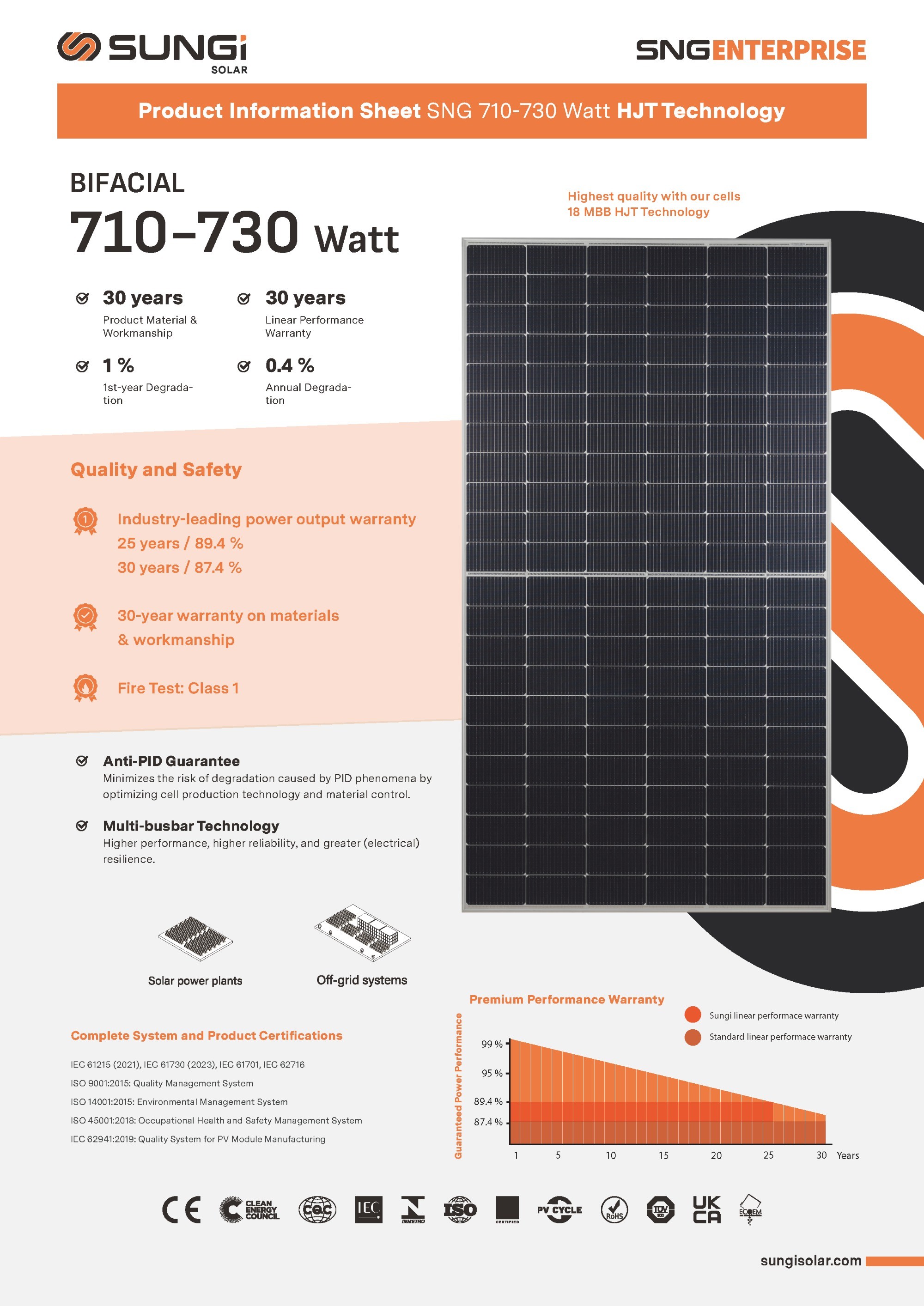

SNG Enterprise Bifacial 710-730W Silver Frame

Sungi Solar China Factory Co., Ltd.

Technology:	Bifacciale, HJT
Fascia di Potenza:	710 ~ 730 Wp
Regione:	Cina

Contatta il Produttore

Note: La tua Richiesta verrà inviata direttamente a Sungi Solar China Factory Co., Ltd..

Descrizione:

Passed IEC 5400 Pa mechanical loading test
Minimizes the risk of degradation caused by PID phenomena by optimizing cell production technology and material control.
Higher performance, higher reliability, and greater (electrical) resilience.

Informazioni del Prodotto
Profilo Della Compagnia

Caratteristiche del Prodotto

Tipo

Monocristallino

Numero Modello

SNG710

SNG715

SNG720

SNG725

SNG730

Garanzia

Garanzia Prodotto

30 Anni

Garanzia potenza

25 anni di 89,4% Potere Output, 30 anni di 87,4% Potere Output

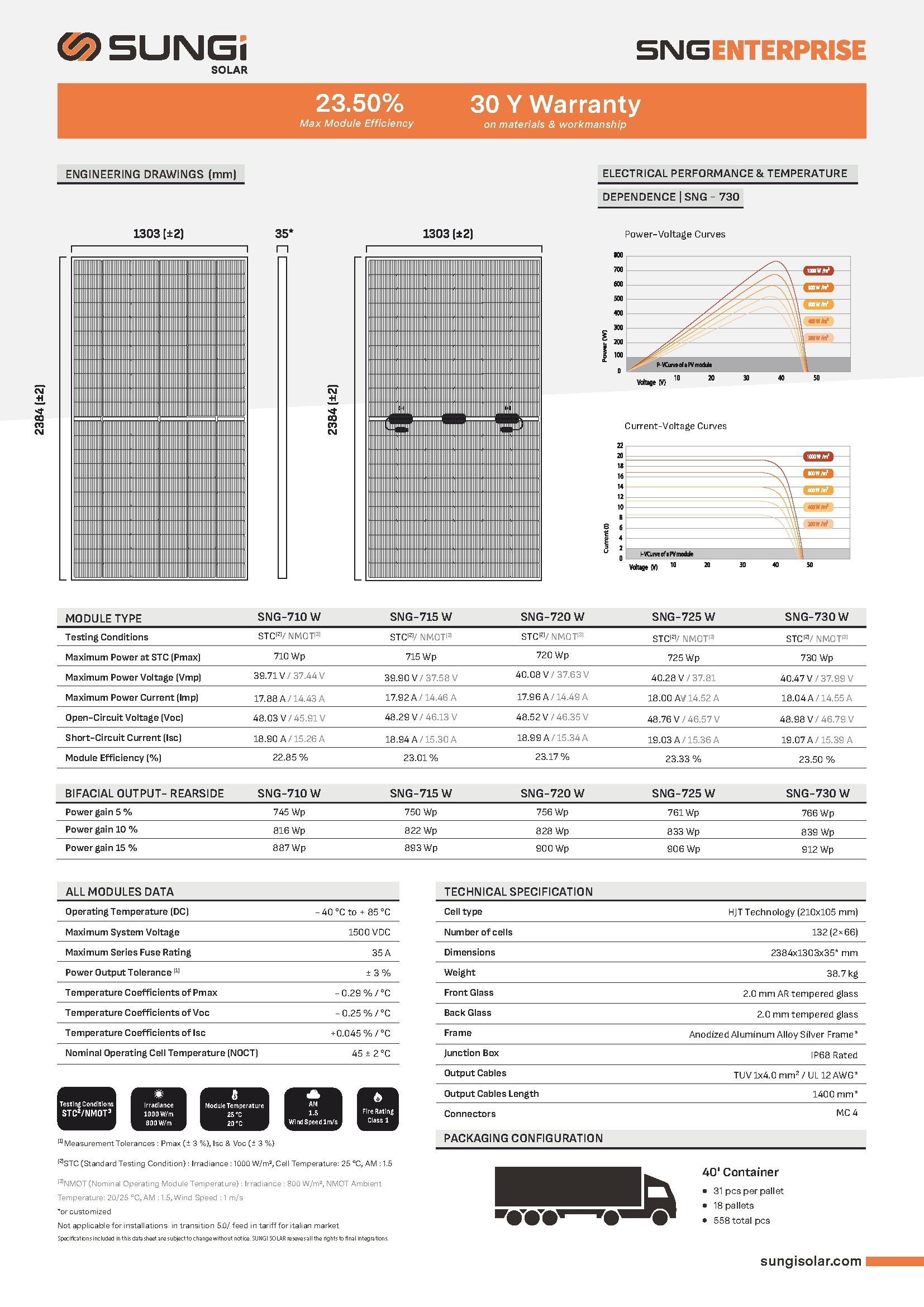

Dati Elettrici in Condizioni Standard

Potenza Massima(Pmax)

710 Wp

715 Wp

720 Wp

725 Wp

730 Wp

Tensione alla Massima Potenza (Vmpp)

39,71 V

39,9 V

40,08 V

40,28 V

40,47 V

Corrente alla massima potenza (Impp)

17,88 A

17,92 A

17,96 A

18 A

18,04 A

Tensione a Vuoto(Voc)

48,03 V

48,29 V

48,52 V

48,76 V

48,98 V

Corrente di corto circuito (Isc)

18,9 A

18,94 A

18,99 A

19,03 A

19,07 A

Efficienza del modulo

22,85 %

23,01 %

23,17 %

23,33 %

23,5 %

Tolleranza sulla Potenza (+)

+ 3 %

Tolleranza sulla Potenza (-)

- 3 %

Condizioni di prova standard (STC): massa d'aria AM 1,5, irraggiamento 1000W/m2, temperatura della cella 25 ° C

Dati elettrici con NOCT

Tensione alla Massima Potenza (Vmpp)

37,44 V

37,58 V

37,63 V

37,81 V

37,99 V

Corrente alla massima potenza (Impp)

14,43 A

14,46 A

14,49 A

14,52 A

14,55 A

Tensione a Vuoto(Voc)

45,91 V

46,13 V

46,35 V

46,57 V

46,79 V

Corrente di corto circuito (Isc)

15,26 A

15,3 A

15,34 A

15,36 A

15,39 A

Temperatura

45±2 °C

Temperatura di esercizio nominale della cella (NOCT): 800W/m2, AM 1,5, velocità del vento 1m / s, temperatura ambiente 20 ° C

Valutazioni di Temperatura

Temperatura Operativa

-40~85 °C

Coefficiente di Temperatura di Pmax

-0,29 %/°C

Coefficiente di Temperatura di Voc

-0,25 %/°C

Coefficiente di Temperatura di Isc

0,045 %/°C

Valutazioni Massime

Tensione Massima di Sistema

1500 V

Tensione Nominale del Fusibile

35 A

Dati Matrial

Dimesioni (A/L/P)

2384x1303x35 mm

Peso

38,7 kg

Dimensione Cella

210×105 mm

Numero Cella

132

Tipo Vetro

Rivestimento Anti-Riflesso, Temperato

Spessore del Vetro

2 mm

Tipo di Telaio

Alluminio Anodizzato

Protezione Scatola di Derivazione

IP 68

Tipo di Connettori

MC4

Diametro Cavi

4 mm²

Lunghezza del Cavi

1400 mm

PDF

Scarica Il PDF Del Produttore

New Generationof photovoltaics

Sungi Solar’s technologies represent the forefront of solar innovation, driving the industry toward higher efficiencies and greater reliability. With advanced designs and cutting-edge materials, we deliver solutions that redefine what’s possible in renewable energy.

Our commitment to excellence ensures that every panel is built to perform, last, and adapt to the challenges of a rapidly evolving world. Choose Sungi Solar to harness the power of innovation and lead the transition to a sustainable future.

Quality and Innovative Production

We are a pioneering company specializing in integrated photovoltaic products.

Since 2006, we have established ourselves as a leading solar cell manufacturer, continuously improving efficiency and performance through cutting-edge technologies.

Our production network spans across the United States, Japan, Europe, and Southeast Asia, supported by ongoing investments in advanced equipment and modern management systems. A professional production team, a dedicated R&D unit, and a highly skilled sales force collaborate to uphold Sungi Solar’s strict quality standards. From real-time monitoring to rigorous product testing, every process is meticulously controlled to guarantee the highest level of excellence and efficiency.

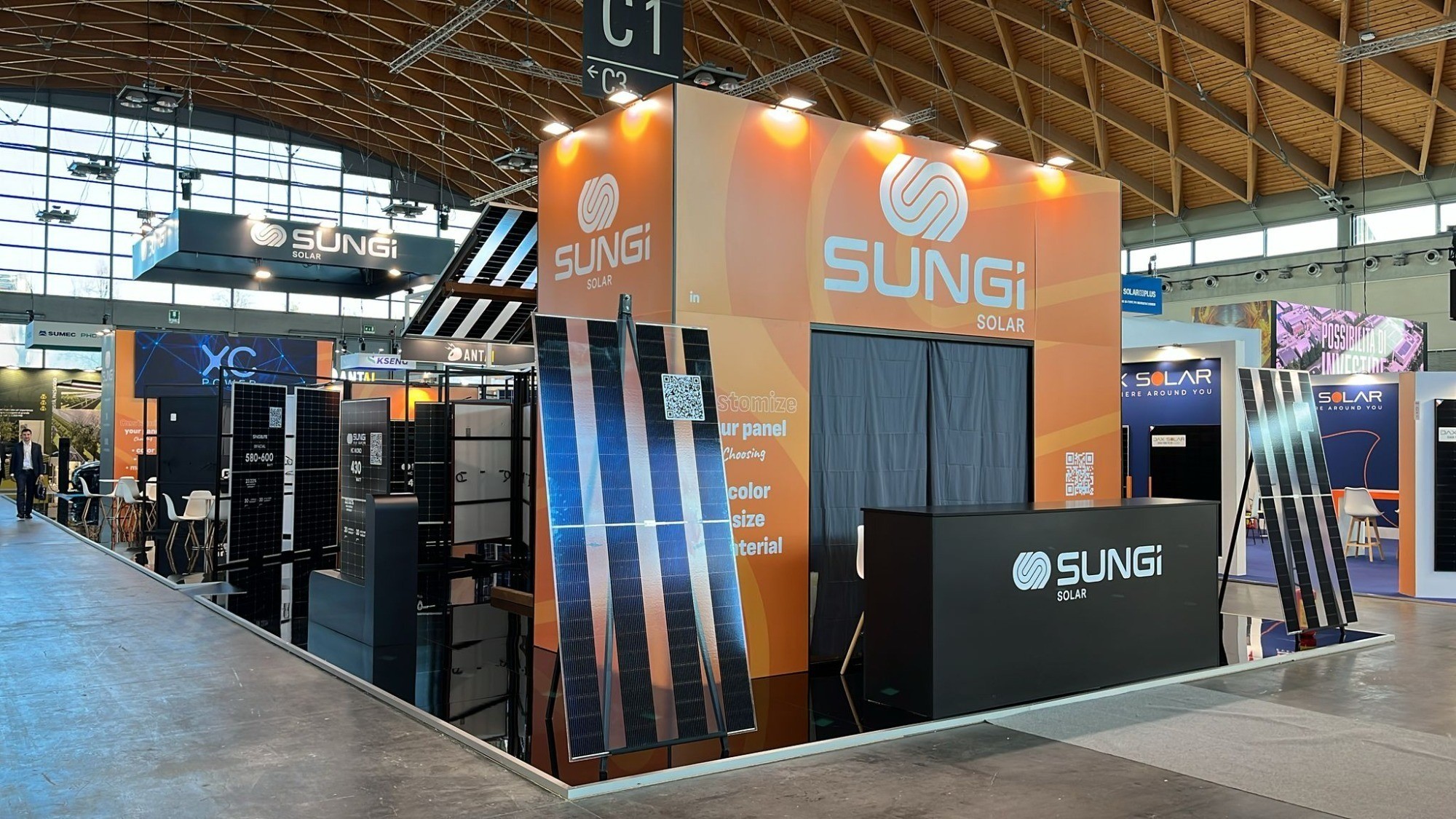

Expo
