UL-465~475M-108CHVN N-Type Monofacial Module

Ningbo Ulica Solar Co., Ltd.
Prezzo:
A partire da €0,0952 / Wp
Technology: TOPCon
Fascia di Potenza: 465 ~ 475 Wp
Regione: Cina Cina
Contatta il Produttore
Note: La tua Richiesta verrà inviata direttamente a Ningbo Ulica Solar Co., Ltd..

Descrizione:

- Tier1 brand

- CE, IEC61215 & IEC61730/TüV, UL, ISO9001, CEC, and etc.

- Can bear snow loads up to 5400Pa and wind loads up to 3800 Pa.

- Guaranteed power output (0~+3)

- Passed PID Test, Fire Test, Salt Mist Corrosion Test and Ammonia Corrosion Test

Caratteristiche del Prodotto

Tipo Monocristallino
Numero Modello
UL-465M-108CHVN UL-470M-108CHVN UL-475M-108HVN
Garanzia
Garanzia Prodotto 15 Anni
Garanzia potenza 15 anni di 90% Potere Output, 30 anni di 87,4% Potere Output
Dati Elettrici in Condizioni Standard
Potenza Massima(Pmax)
465 Wp 470 Wp 475 Wp
Tensione alla Massima Potenza (Vmpp)
33,42 V 33,62 V 33,82 V
Corrente alla massima potenza (Impp)
13,91 A 13,98 A 14,04 A
Tensione a Vuoto(Voc)
39,98 V 40,18 V 40,38 V
Corrente di corto circuito (Isc)
14,64 A 14,71 A 14,89 A
Efficienza del modulo
22,78 % 23,03 % 23,27 %
Tolleranza sulla Potenza (+)
+ 1 % + 1 % + 1 %
  Condizioni di prova standard (STC): massa d'aria AM 1,5, irraggiamento 1000W/m2, temperatura della cella 25 ° C
Dati elettrici con NOCT
Potenza Massima(Pmax)
352 Wp 356 Wp 360 Wp
Tensione alla Massima Potenza (Vmpp)
30,75 V 30,93 V 31,11 V
Corrente alla massima potenza (Impp)
11,46 A 11,52 A 11,57 A
Tensione a Vuoto(Voc)
36,38 V 36,56 V 36,75 V
Corrente di corto circuito (Isc)
11,81 A 11,87 A 12,01 A
Temperatura 43±2 °C
  Temperatura di esercizio nominale della cella (NOCT): 800W/m2, AM 1,5, velocità del vento 1m / s, temperatura ambiente 20 ° C
Valutazioni di Temperatura
Temperatura Operativa -40~85 °C
Coefficiente di Temperatura di Pmax -0,29 %/°C
Coefficiente di Temperatura di Voc -0,25 %/°C
Coefficiente di Temperatura di Isc 0,046 %/°C
Valutazioni Massime
Tensione Massima di Sistema 1500 V
Tensione Nominale del Fusibile 25 A
Dati Matrial
Dimesioni (A/L/P) 1800x1134x30 mm
Peso 21,5 kg
Dimensione Cella 182,2×95,8 mm
Numero Cella 108
Tipo Vetro Rivestimento Anti-Riflesso, Temperato
Spessore del Vetro 3,2 mm
Tipo di Telaio Alluminio Anodizzato
Diodi Scatola di Derivazione 3
Protezione Scatola di Derivazione IP 68
Tipo di Connettori MC4
Diametro Cavi 4 mm2
Lunghezza del Cavi 1100 mm
PDF
Scarica Il PDF Del Produttore

Quality & Certificates

We attach much importance to the quality of our products, With the quality policy of clients satisfaction, quality first, technological innovation and pursuit of better, we make quality assurance and improvements throughout the whole production process, and have won wide praise among our clients. Generally, there are two items, namely quality prevention and quality inspection, for quality control. To assure quality, the quality control procedure is composed of Incoming Quality Control, In-process Quality Control, Quality control for Semi-products, Final Quality Control, Outgoing Quality Control, and Quality Audit.

We have obtained many important international certificates, such as CE, IEC61215&61730/TüV, UL, ISO9001, etc. Our quality concept is that good quality is the only way out of business survival and development. With continuous quality improvements and the participation from all the staff, we do our utmost to make our quality among the best in this industry. About Solar module certifications, please click to download.

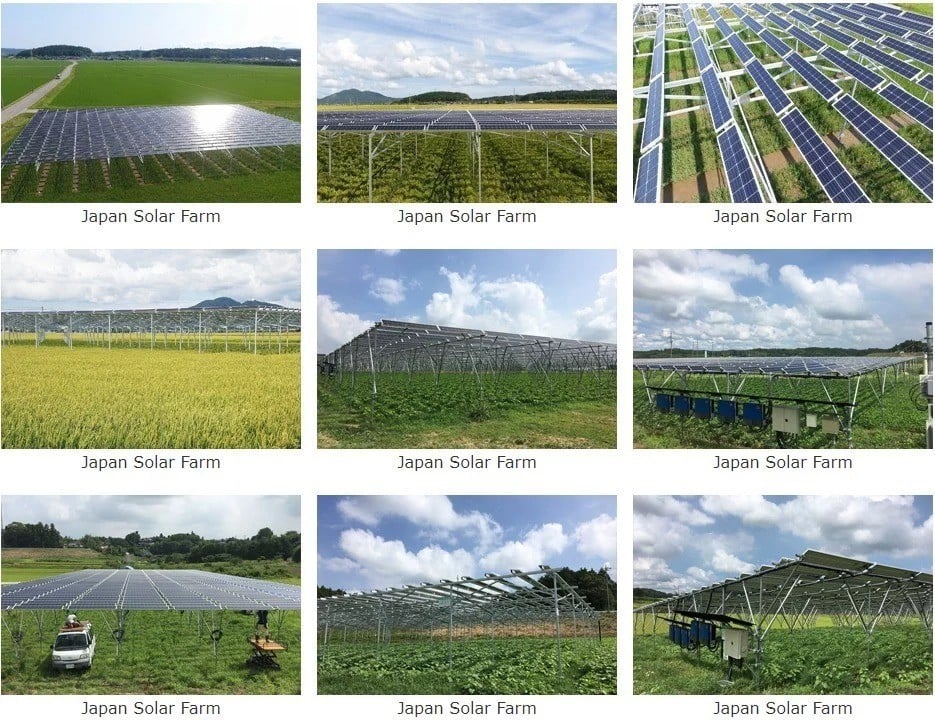

Reference Projects

Ulica's modules have been applied in a wide range of applications including large-scale ground-based systems, roof systems, BIPV systems and others, both on-grid and off-grid.

Ulica's modules have been applied in a wide range of applications including large-scale ground-based systems, roof systems, BIPV systems and others, both on-grid and off-grid.


Ningbo Ulica Solar Co., Ltd.

+86 574 28828975
www.ulicasolar.com
Cina
No. 181 Shanshan Road, Yinzhou District, Ningbo, Zhejiang
No. Personale Impiegato: 500
Società Capogruppo: Shanshan Group Co., Ltd.
Note: La tua Richiesta verrà inviata direttamente a Ningbo Ulica Solar Co., Ltd..

Cristallino

Produzione (MW)/: MWp
Monocristallino, Policristallino
Fascia di Potenza(Wp): 50-715
Video dei prodotti
Prodotti

Technology & Equipment

We are cooperating with some of the world-famous equipment suppliers, such as Centrotherm, Baccini and Gorosabel, which are all the top-ranking global suppliers of PV equipment. We have brought in the most advanced and brand-new equipment from them.

The business partnership with these famous suppliers is the prerequisite for us to provide high-quality products.

As the leaders in PV equipment, our suppliers have many years of experience in this industry and enjoy a very high global reputation. Their websites are as follows:

Quality & Certificates

We attach much importance to the quality of our products. With the quality policy of client satisfaction, quality first, technological innovation and pursuit of better, we make quality assurance and improvements throughout the whole production process and have won wide praise among our clients. Generally, there are two items, namely quality prevention and quality inspection, for quality control. To assure quality, the quality control procedure is composed of Incoming Quality Control, In-process Quality Control, Quality control for Semi-products, Final Quality Control, Outgoing Quality Control, and Quality Audit.

We have obtained many important international certificates, such as CE, IEC61215 & 61730/TüV, UL, ISO9001, etc. Our quality concept is that good quality is the only way out of business survival and development. With continuous quality improvements and the participation of all the staff, we do our utmost to make our quality among the best in this industry. About Solar module certifications, please click to download.

Reference Projects

Ulica's modules have been applied in a wide range of applications including large-scale ground-based systems, roof systems, BIPV systems and others, both on-grid and off-grid.

Ulica's modules have been applied in a wide range of applications including large-scale ground-based systems, roof systems, BIPV systems and others, both on-grid and off-grid.
